Panelift Grange Garage Doors

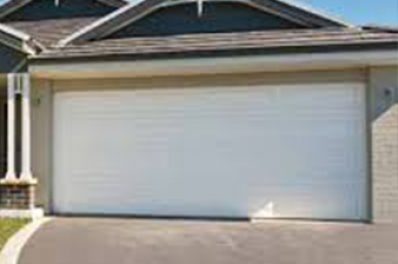

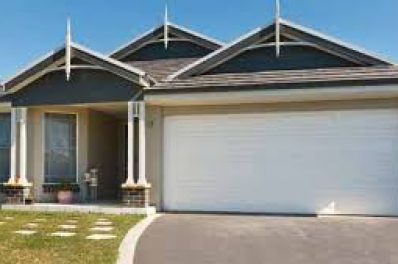

The Grange door is a steel sectional overhead garage door. It has an attractive, wide raised pattern design, accentuated by the woodgrain finish.

Panelift Grange Garage Door

features and benefits

  • Available in sizes from 1825mm to 3415mm in height and from 1800mm to 6600mm in width. Due to the shape of the pattern, some widths are not available. Raised pattern sections measure 360mm high x 1097mm wide and cannot be varied.
  • Panelift garage doors will provide you with quiet, smooth operation. Features include:

    • Factory fitted, polypropylene internal hinging system and moulded, glass reinforced polypropylene track curve.
    • Nylon wheels with ball bearings.
  • Safety should be a key consideration when selecting your garage door, as door failures can cause serious injury. The following safety features have been built into your Panelift door:

    • Pinchfree™ panel edge shape and hinge design means there is little chance of finger entrapment between panels, on both the outside and inside; only possible with B&D’s unique, patented hinging system.
    • Rolled over edges on stiles, panels and reinforcing reduces the risk of cut fingers.
    • In-line wheels and track that do not protrude behind the door, reducing the chance of finger entrapment at the sides of the door.
    • Factory fitted hinges and pinch free panel profile, reducing the chance of finger entrapment.
  • Your Panelift door will continue to be easy to open and close, with features such as:

    • Ball bearing wheels with polypropylene hinges and glass reinforced polypropylene track curve, allowing the door to run easily and smoothly during opening and closing.
    • Polypropylene hinges and track curve reduce the chance of the door binding.
  • The garage today is used to store many different valuable objects, and in some cases is converted into another room, so weather protection is an important feature of any garage door. The Panelift door features:

    • COLORBOND® steel, to stand up to the harsh Australian climate.
    • Bottom weatherseal which is soft and pliable, helping to stop leaves and rain coming in under the door.
    • Jamb seal kit option available to reduce gaps between the door and the door jamb, to keep out the weather.
  • Your Panelift door will continue to operate like new, with features such as:

    • Springs designed to exceed the Australian Standard for garage doors – 20,000 cycles.
    • Factory fitted, internal hinging system, eliminating the need to maintain hinges.
  • Available in an extensive range of Colorbond and Timbagrain options. Click to view colour chart

  • Woodgrain and smooth finish.

Note: The process of roll forming sheet steel may cause irregularities in flat panel surfaces. Woodgrain texture improves the door aesthetics. Smooth finishes not available for all sizes.


Grange Profile — Garage Doors in Tweed Heads

Matching Garage Door Opener

B&D’s latest Controll-A-Door range enables doors to operate with smooth and reliable operation and Panelift doors are best paired with the Controller Door S; or the top of the range Controller Door Advance.  Both these motors have a 7 year or 20,000 cycle warranty from B&D.


External lock available as optional extra.

Lifting Systems

Doors provided for standard headroom situations, unless otherwise specified. Rear torsion and standard headroom independent available as optional extras.


  • Windows.
  • Tapers for garage floors that slope across the opening.
  • External locking.
