Industrial & Commercial Doors
banora garage doors
Series 2 - Industrial Roller Door
For industrial doors we offer a range of branded motors which will specifically suit your size of door and volume of use of the door.
We offer motors in the light industrial range and up to Series 2 and 3 doors which are heavy commercial doors.
As it is critical for you to have the correct pulling power rating for your door, we will come out and assess your commercial / industrial door requirements before quoting on a new/replacement motor.

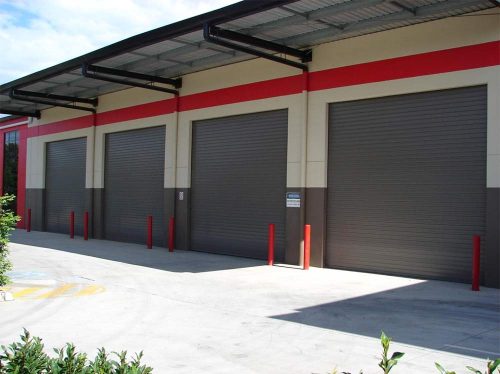

Photo of B&D Series 2 doors, all automated – installed by Banora Garage Doors
Roller Doors made to cater for larger door openings requiring additional strength and durability.
| SIZE | Minimum Door Size | Maximum Door Size |
|---|---|---|
| HEIGHT | 1450 mm | 5100 mm |
| WIDTH | 2000 mm | 5500 mm |
features
- Curtain steel strength – 0.5mm continuous brake pressed steel curtain
- Optional taper for sloping ground surfaces
- Aluminium bottom rail with weatherseal.
- Guides supplied with 50mm galvanised steel guides.
- Windlocking – Optional. Extruded aluminium
- Drum – reinforced pressed galvanised metal
- Spring life designed for 20,000 cycles.
- Door operation – Nylofelt® minimises friction, ensures continuous smooth, quiet operation for a minimum of 20,000 cycles.
- Manually operated doors
- up to 2400mm (h) – without hauling chain wheel equipment
- Doors over 2400mm (h) – direct drive or geared chain equipment
- Automated doors – use of industrial strength motors
- Brackets are made from hot dipped, galvanised 50mm hot rolled steel
- Locking – Waist high slide bolt locking is located internally and supplied on the left hand side as standard.
- Other locking options
- On wider doors locks are fitted both sides.
- Centre lift lock with external key and internal knob operation.
- Internal and/or external bottom rail slide bolt locking.
- Chain cleat (not lockable)
Series 3 ROLLER DOORS
| SIZE | Minimum Door Size | Maximum Door Size |
|---|---|---|
| HEIGHT | 1200 mm | 3600 mm |
| WIDTH | 2000 mm | 5500 mm |
features
- Curtain steel strength – 0.5mm continuous brake pressed steel curtain
- Bottom rail – Aluminium bottom rail with weatherseal.
- Optional taper for sloping ground surfaces
- Guides – Supplied with 50mm galvanised steel guides.
- Drum – Pressed galvanised metal.
- Springs – Spring life designed for 20,000 cycles.
- Operation – Nylofelt® minimises friction, ensures continuous smooth, quiet operation for a minimum of 20,000 cycles.
- Manual Operation
- Doors up to 2400mm (h) – without hauling chain wheel equipment.
- Doors over 2400mm (h) – direct drive chain equipment.
- Automated – can be motorized to suit size of door
- Brackets – Hot dipped, galvanised 50mm hot rolled steel.
- Locking – Waist high slide bolt locking is located internally and supplied on the left hand side as standard.
- OPTIONS On wider doors locks can be fitted both sides.
- Centre lift lock with external key and internal knob operation.
- Internal and/or external bottom rail slide bolt locking.
- Finishes – Extensive range of standard Colorbond® colours and Zincalume® finish.
- Ventilation: Optional – slotted
Banora Garage Doors – replacing an industrial door that has been impacted by a vehicle
BEFORE
JOB AFTER COMPLETION
Industrial Roller Shutter
Ezi-Roll RollerSteel Shutters
⦁ These type of doors are often used for larger doors in apartment complexes, shopping centres and factories but roller shutters can also been used for smaller applications and for internal access within a building.
⦁ Offer high security
⦁ Custom made – Can be fully paneled or perforated for light and airflow
⦁ Various models available – constructed in steel or aluminium
⦁ Can be automated or manually operated
⦁ Mullions – additional option
Ezi-Roll Aluminium Shutter
